Mitchell Modular Gauge Backplane

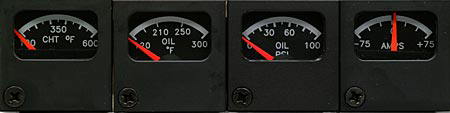

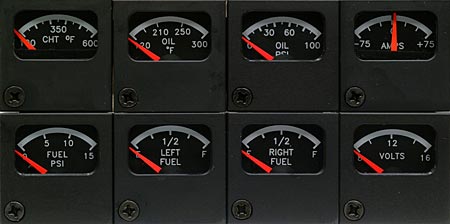

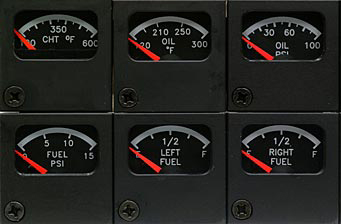

Image illustrates instrument layout, gauges must be ordered separately

Important Ordering Information -->

You must provide the following information for proper system configuration

• Number of gauges in backplane
• Rows x width
• Order in which gauges will be assembled in backplane by type

Please call our toll-free line with your backplane order, to ensure you receive a complete and properly configured system.
